Name: Active Status RJ45 Multiple Port Connectors With Black Housing Color
Brand: GLGNET
Price: 1 USD

Brand Name : GLGNET

Model Number : JDLM4T86C 5G Magnetic RJ45 Connector

Certification : ISO9001, ISO1400, UL, RoHS, IECQ QC080000

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20kkports/month

Delivery Time : 10 working days

Packaging Details : Tray, Tube, Reel, Carton

Product Name : 8P8C RJ45 Modular Jack

Transformer Speed : 5G Base T

Ports : 2x4

Light Pipes : Yes

Contact Finish : 50u" Gold Plating

Operation Temp : 0 to 70℃

Contact Now

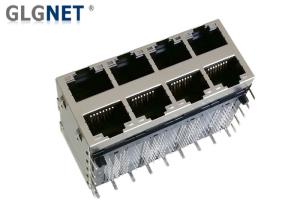

2x4 Multiple Port RJ45 Jack with light pipes 5G Magnetic RJ45 Connector

1. GLGNET 2x4 Multiple Port RJ45 Jack (JDLM4T86C) Parameters

General
Status	Active
Category	Modular Jacks/Plugs
Part #	JDLM4T86C
Component Type	PCB Jack
Magnetic	Yes, 5G Base-T
Overview	Magnetic Modular Jacks
Power over Ethernet (PoE)	Non POE
Product Name	Magnetic Jack, Modular Jack 8/8, RJ45
Physical
Housing Color	Black
Flammability	UL94V-0
Tab	N/A
Jack Height (mm)	25.88
Jack Length (mm)	41.12
JackWidth (mm)	58.98
Soldering Foot Length (mm)	3.2
Contact Mating Area Plating	50u" Gold Plating, can be customed as 1.8", 3u", 6u", 15u", 30u", 50u"
EMI Spring	Yes
Lightpipes/LEDs	Light pipes
Material - Metal	Brass, Phosphor Bronze, Nickel
Material - Plating Mating	Gold
Material - Plating Termination	Tin
Material - Plastic	High Temperature Thermoplastic(PA46)
Orientation	Right Angle (Side Entry)
PCB Locator	Yes
PCB Retention	Yes
Packaging Type	Tray
Pitch - Termination Interface	1.27mm
Ports	2x4
Storage Temperature	0° to +70°C
Temperature Range - Operating	-40° to +°C
Waterproof / Dustproof	No
Electrical
Grounding to PCB	Yes
Grounding to Panel	Panel Ground Tab
Shielded	Yes

Turns Ratio	1:1±2%
Open Circuit Inductance (ocl)	1600uH MIN@ 100KHz/100mV with 8mA DC Bias for (Channel 1,2,3,4)
Insertion Loss (IL)	-0.5dB MAX @ 1MHz – 50MHZ; -1.0dB MAX @ 50MHz – 125MHZ; -2.0dB MAX @ 125MHz – 200MHZ; -2.5dB MAX @ 200MHz – 250MHZ;
Return Loss (RL) Z out = 100 OHM	-20dB MIN @ 1MHz – 50MHZ; -20+15LOG(f/40MHz) dB MIN @ 50MHz – 250MHZ;
Crosstalk Adjacent Channels	-30dB MIN @ 1MHz – 125MHZ -25dB MIN @ 125MHz – 250MH
Common Mode Rejection Ratio (CMRR)	-23dB MIN @ 1MHz – 250MHZ
Common To Differential Mode Rejection (REF)	-23dB MIN @ 1MHz – 250MHZ
HI - POT	2250 VDC @ 60 Seconds

2. GLGNET 2x4 Multiple Port RJ45 Jack (JDLM4T86C) Applications

Networking equipment

Equipment utilizing a network port

Active Status RJ45 Multiple Port Connectors With Black Housing Color

This is not a definitive list of applications for this product. It represents some of the more common uses.

3. GLGNET 2x4 Multiple Port RJ45 Jack (JDLM4T86C) Mechanical Drawing :
